P系列-5406-HP
發(fā)布日期：2024-01-16 瀏覽次數(shù)：1457

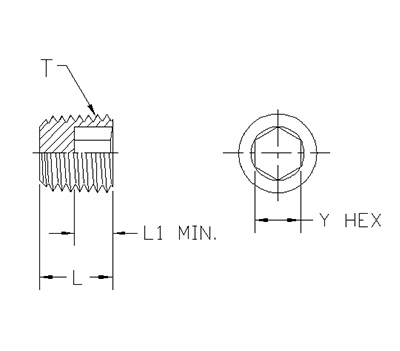

| ITEM | P/N | Y HEX | T | L | L1 MIN. |
| 1 | 5406-HP-02 | 0.188 | 1/8-27 NPTF | 0.30 | 0.156 |
| 2 | 5406-HP-04 | 0.250 | 1/4-18 NPTF | 0.46 | 0.188 |
| 3 | 5406-HP-06 | 0.312 | 3/8-18 NPTF | 0.46 | 0.188 |
| 4 | 5406-HP-08 | 0.375 | 1/2-14 NPTF | 0.61 | 0.250 |
| 5 | 5406-HP-12 | 0.562 | 3/4-14 NPTF | 0.62 | 0.313 |
| 6 | 5406-HP-16 | 0.625 | 1-11-1/2 NPTF | 0.77 | 0.375 |
