SNA
發(fā)布日期：2024-01-16 瀏覽次數(shù)：1777

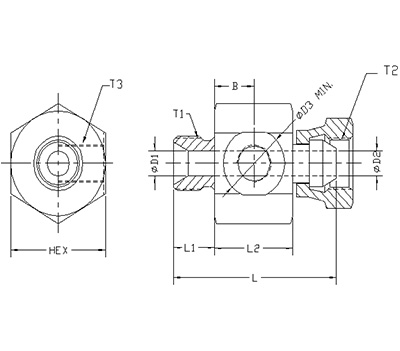

| ITEM | P/N | T1 | T2 | T3 | L | L1 | L2 | B | D1 | D2 | D3 MIN. | HEX |
| 1 | SNA-04-04-02 | G1/4-19 | G1/4-19 | G1/8-28 | 43.65 | 11.0 | 21.0 | 10.5 | 6 | 6 | 16.5 | 25.4 |
| 2 | SNA-06-06-02 | G3/8-19 | G3/8-19 | G1/8-28 | 46.30 | 12.0 | 21.0 | 10.5 | 7.9 | 7.9 | 16.5 | 25.4 |
| 3 | SNA-08-08-02 | G1/2-14 | G1/2-14 | G1/8-28 | 50.20 | 14.0 | 21.0 | 10.5 | 11.1 | 11.1 | 16.5 | 27 |
| 4 | SNA-12-12-04 | G3/4-14 | G3/4-14 | G1/4-19 | 52.10 | 16.0 | 21.0 | 10.5 | 16.7 | 16.7 | 21.1 | 32 |
| 5 | SNA-16-16-04 | G1-11 | G1-11 | G1/4-19 | 56.70 | 19.0 | 21.0 | 10.5 | 22.2 | 22.2 | 21.1 | 41 |
